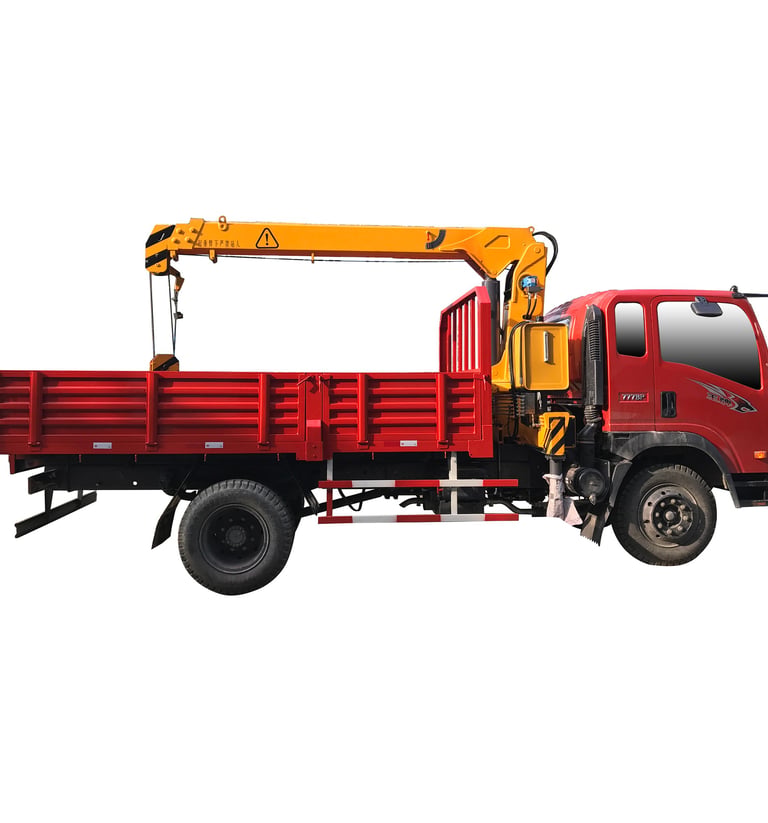

Red truck equipped with 4 ton telescopic crane

4 Ton Telescopic Truck Crane

The 4 Ton Telescopic Truck Crane has a max lifting capacity of 4 tons and a max lifting moment of 10 tonnes. It has a hydraulic system flow of 32L/min and a hydraulic system pressure of 20MPa. It requires 700mm of installation space, weighs 1350kg and has a 360 degree rotation angle.

GET A QUOTE

DOWNLOAD BROCHURE

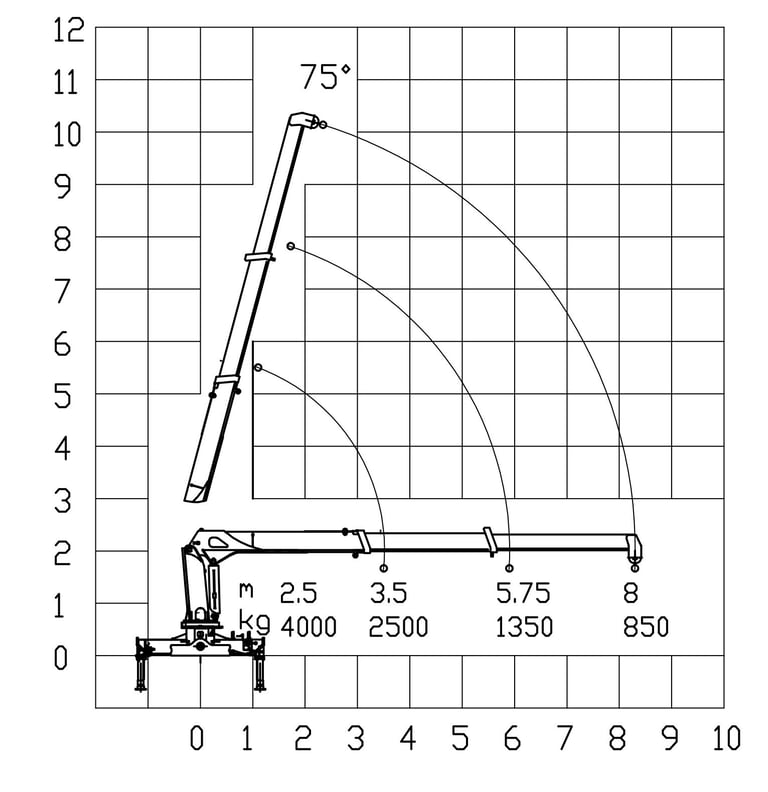

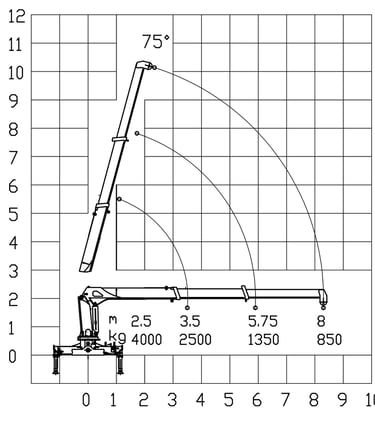

Diagram of a 4 ton telescopic boom crane with a crane arm, showcasing its parameters.

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS100A-3

4000 Kg

10 Ton.M

8 M

16 Kw

32 L/Min

20 Mpa

60 L

360°

1350 Kg

700 MM

3300 MM

Why choose the 4 ton telescopic truck crane?

The 4 ton telescopic truck crane is designed to get the job done. A notable feature is its two-part telescopic cylinder arrangement, where one cylinder controls the boom and another controls the telescopic extension. This design improves both efficiency and safety during crane operation.

The crane also has a frame that ensures stability under high pressure. It also has a steel plate that, combined with the hexagonal and pentagonal construction, provides load support and reduces the likelihood of accidents. Finally, the crane incorporates a boom design that extends the life of the system.
