New 5 Ton Telescopic Loader Crane

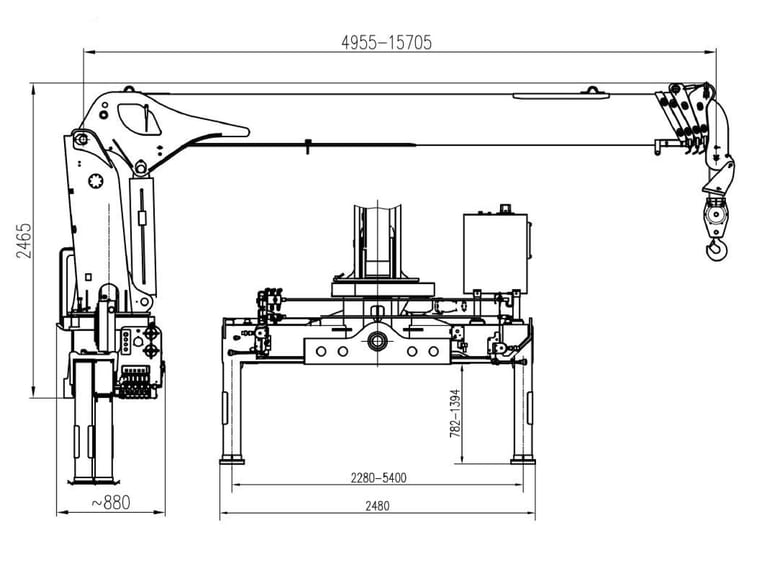

The 5-ton 5-section truck-mounted crane features a heptagonal box structure. The fully retracted length of the boom is 4.95 meters, and the fully extended length is 15.5 meters. It is driven by a hydraulic motor with worm gear reduction and can perform continuous 360° full-circle slewing on a ball bearing slew ring. It is equipped with safety devices such as an anti-two-block device, boom angle indicator, load meter, hook safety latch, spirit level, hydraulic safety valves, check valves and holding valves.

GET A QUOTE

DOWNLOAD BROCHURE

PRODUCT VARIANTS

Model:

Max.Lifting Weight:

Max.Lifting Moment:

Max.Working Radius:

Recommend Power:

Hydraulic System Flow:

Hydraulic System Pressure:

Oil Tank Capacity:

Rotation Angle:

Crane Self Weight:

Installation space:

Outtrigger Span:

SQS125G-5

5 t

125 Kn.M

15.5 M

/ Kw

50 L/Min

22 Mpa

90 L

360°

2650 Kg

900 MM

5400 MM

Why choose the 5 ton 5 Sections telescopic boom truck mounted crane ?

The 16 tonne telescopic boom truck-mounted crane has an integral hoist, which improves the efficiency of the crane and extends the life of the hydraulic system. It also has a tilting device and an integral slewing bearing that supports the upper part of the turntable while playing the slewing role.

The 16-tonne truck-mounted telescopic boom crane has a three-point bridge structure that improves the crane's functionality and square outriggers that protect the cylinder. It also has a pentagonal boom designed to prevent collapse when lifting heavy objects and a hydraulic lifting system based on efficient friction and disc spring brakes.
